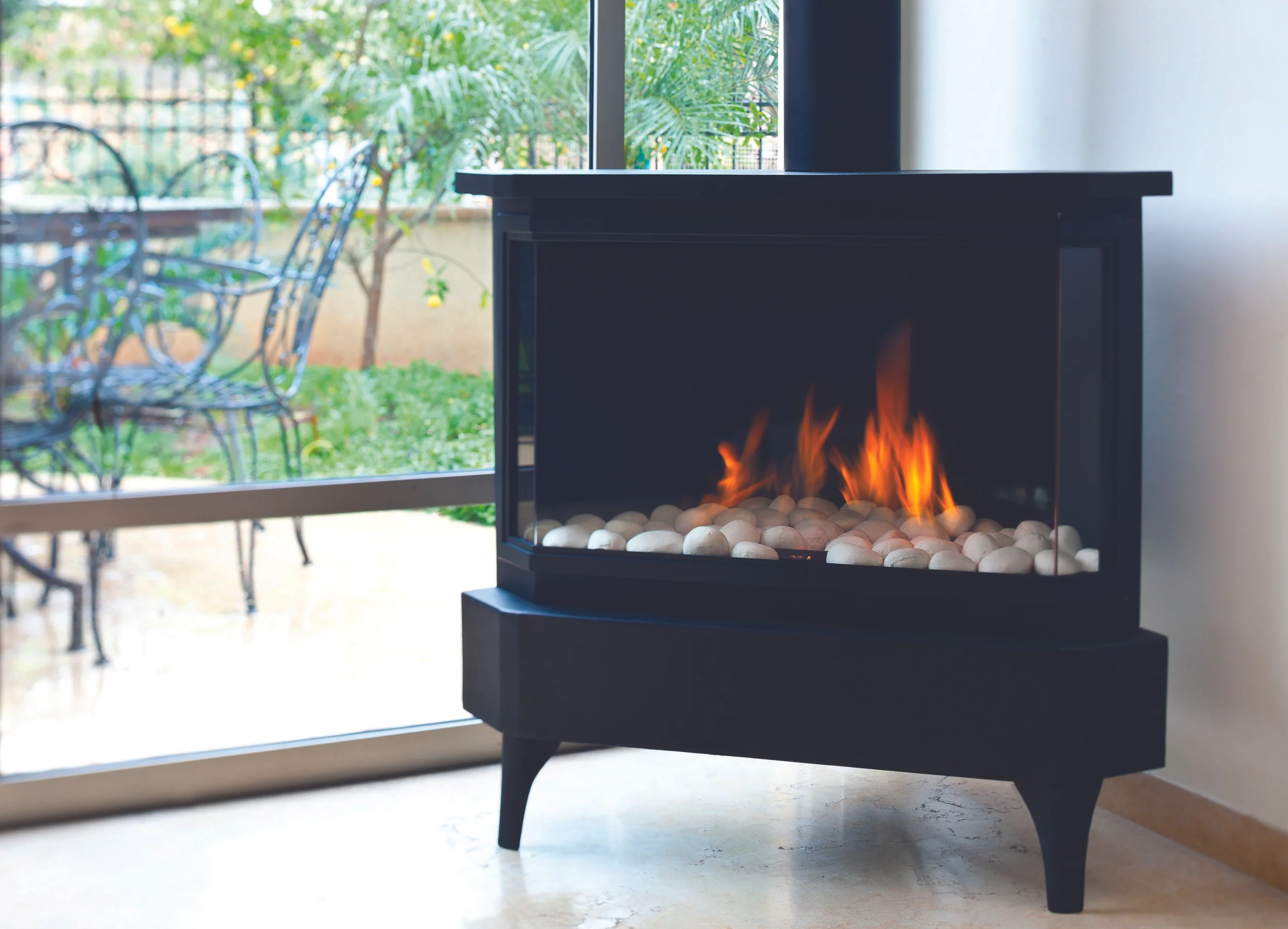

Ortal Clear Stand Alone Series

SO COOL, YOUR FRIENDS WILL THINK IT'S CUSTOM.

Your fireplace can be a work of art all on its own. In the Clear Stand Alone Series from Ortal, we take care of all the details - straight out of the box. Through this series, Ortal offers a direct-vent gas fireplace line that does not require any framing or finishing details once installed. Wrapped in a matte black steel casing, these fireplaces can stand on their own. In most applications, a portion of the vent pipe remains exposed. Both single-sided and three-sided (TS) configurations are available in this series.

CLEAR STAND ALONE SERIES FEATURES:

  • Beautiful, variegated flame pattern with 6-9” flame heights
  • Operated using a thermostatic remote control that allows the user to regulate flame size and heat output

  • Safety barrier screen is included**

  • Firestone, fireglass and ceramic log/ceramic branch set options available for the interior firebox media



CLEAR STAND ALONE SERIES SPECIFICATIONS:


CLEAR STAND ALONE 40 TS

Required opening: 21" w x 34-9/10" h x 16-3/5" d

Fire viewing: 15-2/3" w x 21-2/3" h x 11-8/9" d
Max. square footage heated: 473 ft. sq. (23,670 BTUs/h.)*


CLEAR STAND ALONE 75 TS

Required opening: 32-2/5" w x 30-9/10" h x 19-1/5" d

Fire viewing: 27-1/5" w x 19-2/5" h x 13-1/2" d
Max. square footage heated: 582 ft. sq. (29,100 BTUs/h.)


CLEAR STAND ALONE 75

Required opening: 37-2/3" w x 25-3/5" h x 17-3/5" d

Fire viewing: 29-1/9" w x 17-1/9" h
Max. square footage heated: 582 ft. sq. (29,100 BTUs/h.)


CLEAR STAND ALONE 110

Required opening: 52-1/10" w x 22-2/5" h x 17-3/5" d

Fire viewing: 43-2/7" w x 13-3/5" h
Max. square footage heated: 743 ft. sq. (37,167 BTUs/h.)


CLEAR STAND ALONE 150

Required opening: 68-2/3" w x 22-2/5" h x 17-3/5" d

Fire viewing: 59-4/5" w x 13-3/5" h
Max. square footage heated: 874 ft. sq. (43,715 BTUs/h.)


* This is an approximate measure that may be affected by several variables.

** As per CSA regulations implemented in 2015, all fireplaces with a sealed glass front are installed with a safety screen if it has been determined that the glass surface temperature exceeds 172° F while the unit is fired.



GET TO KNOW ORTAL.

Ortal fireplaces are distinctive in the Canadian market because they have moved beyond the “clean face” trim typical of direct-vent gas fireplaces available today to adopt a truly frameless design. Over thirty years of experience in manufacturing fireplaces has given Ortal the insight to create fireplaces that are durable and reliable; and they continue to maintain their place as a design disrupter in the heating industry. The Fireplace Specialist and Ortal have enjoyed a 15 year partnership with aligned values of quality, end-to-end service and challenging the norm in fireplace design.
